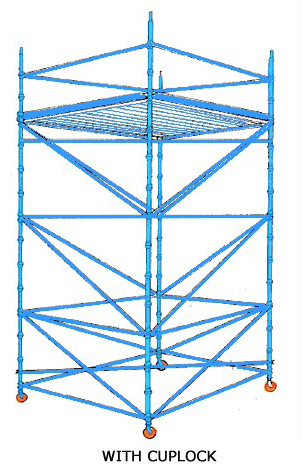

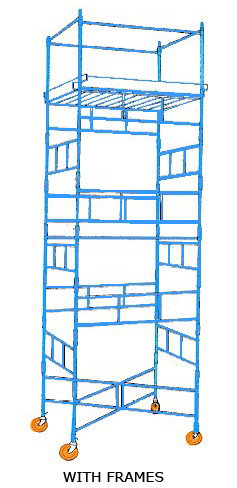

Mobile Towers are the most economical method of providing access where only a small working platform is required and the work front is spread over a large area.
Verticals are made in following sizes :
Length
Width
Max height
1.5
1.5
4.50
2.0
2.0
6.0 m
2.5
2.5
7.5 m
SAFETY POINTS
Maximum Height : The height of free standing tower should not exceed 3 times the smallest base dimension
for external use. Towers of greater height must be tied in or adequately secured.
Movement of Towers : Towers should only be moved form the base. No personnel should be on the working platform during this operation. All castors should be firmly secured to the frames. Wheel loads should be re - applied after re - positioning.
