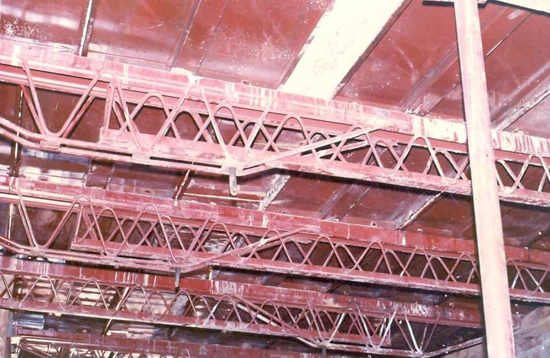

| Telescopic Spans are result of many years experience in building construction and civil engineering. They incorporate all the feature which are demanded by industry for today's method of construction. |
 |
Advantages of Telescopic Spans
- Saving on time and cost by relating the use of the same section on the same job.
- Quick and easy erection and stripping.
- Single simple adjustment for length of span.
- Intermediate supports eliminated.
- No loose parts to be lost.
- Compact for storage and transport.
- Stand rough site handling and reduce maintenance cost.
- Eliminates cost of cutting and wastage of timber.

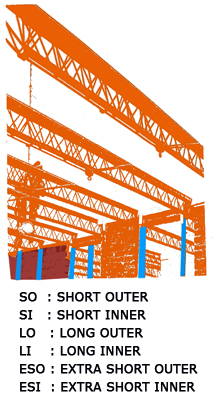

| Prop Size |
Height (m) |
| Min |
Max |
| ESO-ESI |
1.75 m |
2.70 m |
| SO - ESI |
2.40 m |
3.45 m |
| SO - SI |
2.45 m |
4.12 m |
| SO - LI |
3.05 m |
4.75 m |
| LO - SI |
3.15 m |
4.85 m |
| LO - LI |
3.15 m |
5.50 m |
|
Loading Data
The following table can be used for determining the span and spacing of span for various slab
thickness.
Slab
Thk (mm) |
Total
Load Kg/m2 |
Permissible clear span for c/c |
| 600 mm |
800 mm |
900 mm |
1150 mm |
| 100 |
420 |
5500 |
5000 |
4450 |
4010 |
| 125 |
480 |
5330 |
4650 |
4340 |
3760 |
| 150 |
540 |
5000 |
4350 |
4090 |
3560 |
| 200 |
660 |
4520 |
3950 |
3680 |
3200 |
| 250 |
780 |
4140 |
3650 |
3380 |
2840 |
| 300 |
900 |
3730 |
3400 |
3150 |
2490 |
|
|
| |
|
| |
|
| |
|
|
