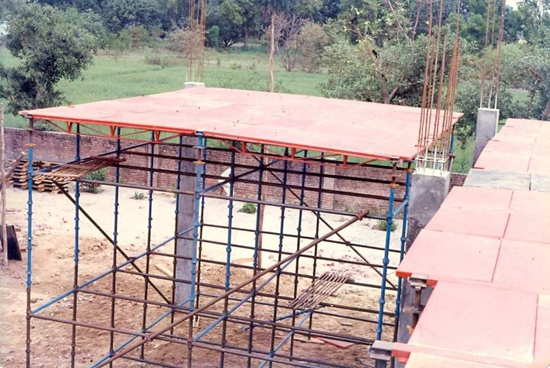

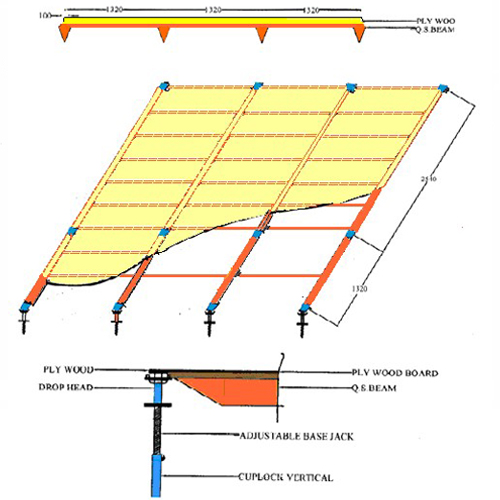

Quick strip system can be used both with M.S. Floor Forms as well with shuttering Ply Board.

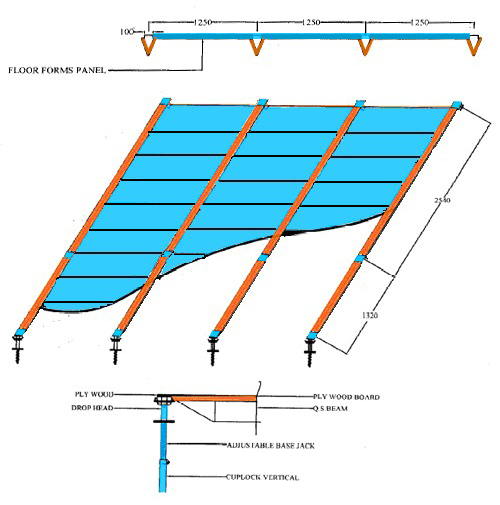

With Floor Forms :

Floor forms are manufactured in standard sizes of 1150 x 600 and 900 x 600. Depending upon the length of floor form, spacing of the quick strip beams has to be maintained. Series of quick strip beams are joined in lengths depending upon the space available. Quick Strip beams are normally available in lengths of 1.2m, 1.5m, 1.8m and 2.0m. Top width of the Beams is 100 mm.

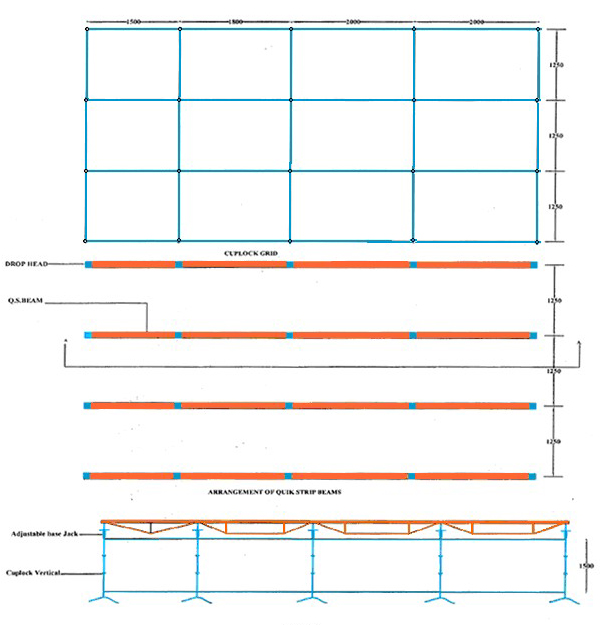

These Beams are fixed into Drop Heads which have inserts to receive Q.S. Beams. Floor Forms are firmly secured into the L shape seats provided on either side of Q.S. Beam
